THINKCAR ADAS

Calibration Kit

An Intelligent Way To Calibrate Your ADAS, Easier and More accurate!

system function

THINKCAR ADAS Calibration Kit is a portable ADAS calibration device developed by THINKCAR. It uses five-wire and cross laser instrument to assist in centering and positioning, which is more accurate. THINKCAR ADAS(Advanced Driving Assistance System) integrates ACC, LDW, AVM, BSD system calibrations function.

AVM

The panoramic surround view system sets up 4 to 8 wide-angle cameras around the car that can cover all the field of view around the car, and processes the multiple video images collected at the same time into a 360-degree top view of the car’s surroundings. The display on the screen allows the driver to clearly check whether there are obstacles around the vehicle and understand the relative position and distance of the obstacles, helping the driver to park the vehicle easily. Some cars can realize 3D perspective.

BSD

The blind spot monitoring system uses sensors (visual sensors, millimeter wave radar) installed at the rear or side of the vehicle to detect incoming vehicles or pedestrians. The electronic control unit analyzes and processes the information collected by the sensors. If there are vehicles or pedestrians in the blind area, The display unit will notify the driver by sounding an alarm or displaying an alarm message in the rear view mirror.

LDW

The lane departure warning( LDW) is a system that assists the driver in reducing traffic accidents due to lane departure by warning; these functions are realized by the front camera, and some mid-to-high-end cars are also equipped with road standard recognition functions.

ACC

Adaptive cruise is a comfortable driving assistance function. If the front of the vehicle is clear, the adaptive cruise (ACC) will maintain the set maximum cruise speed and move forward. If it detects a vehicle ahead, the adaptive cruise (ACC) will reduce the speed as needed, and keep distance with front vehicles until the appropriate cruising speed is reached.

ThinkCar ThinkADAS Master

ADAS = Advanced Driving Assistance Systems

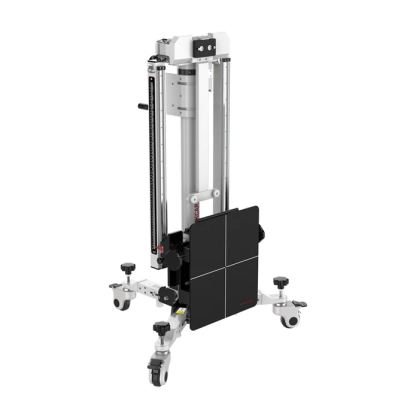

The THINKCAR THINKADAS ELITE ADAS (Advanced Driving Assistance Systems) is Fully foldable design including completely flat folded base, close-fitting foldable arms, and foldable crank handle with Multi-functional base integrates 360°rotating wheels, wheel locks, and fine-tuning height-adjustment to adapt to uneven ground. The equilateral triangle design of the base ensures a stable frame Digital distance laser shows the cross-bar height and makes sure it is equal to the standard value precisely. Five line laser and fine-tuning switch help to easy center the device and parallel to the vehicle and offer high precision calibrating. Special small target design makes it convenient to carry and store.

23-style manufacturer standard targets provide one-stop calibration service
Compatible with AVM/ RCW/ BSD Targets of Thinkcar ADAS PRO
Quick access to ADAS calibration

Understanding Package

Packages A: Standard Package
Packages B: Asian Expanded Coverage
Package C : American Manufacturers
Package D: European Manufacturers

When is ADAS Calibration required?

Windshield Replacement
Suspension Repairs
Wheel Alignment
Tire Size Change
Related DTC Is Present
Sensor or Mounting Bracket Replacement
Front Airbag Deployment If Deflected Off Windshield
ADAS-Related TSBs/Manufacturer Position Statement Requirements*
Mechanical Procedures Like Radiator And Condenser Repairs That Require Removal Of Front-Mounted Sensors
ADAPTIVE CRUISE CONTROL (ACC)
Adjusts vehicle speed to maintain a safe distance with vehicles ahead
AROUND VIEW MONITORING (AVM)
Provides 360-degree, bird’s-eye view to help with drivers park more easily
BLIND SPOT DETECTION (BSD)
Detects and warns driver of vehicles in either driver or passenger rear corners (blind spot)
LANE DEPARTURE WARNING (LDW)
Warns the driver when the vehicle drifts out of their lane
LIGHT IMAGING DETECTION AND RANGING (LIDAR)
Detects objects in vehicle vicinity to create a 3D map of objects and surroundings
NIGHT VISION SYSTEM (NVS)
Improves a driver’s vision in darkness or poor weather
REAR COLLISION WARNING (RCW)

Warranty

1 Year Limited

ThinkCar ThinkADAS Package A ADAS Mobile (with LDW Panels (Small Size)		Components List
Mercedes-Benz	LAM01-01	Description	Part Number	Qauntity
Honda	LAM01-04-L	Mobile Calibration Frame		1
Honda	LAM01-04-R	Laser Range Finder		1
Toyota	LAM01-06-1	Five-line Laser Device	LAM09-01	1
Toyota	LAM01-06-2	Cross Laser Module	LAM09-02	1
Toyota	LAM01-06-3	Laser Reflector	LAM09-03	1
Nissan	LAM01-07-L	Auxiliary Mirror	LAM09-04	1
Nissan	LAM01-07-R	L-Shaped Positioning Bracket	LAM09-05	1
Hyundai/KIA	LAM01-09	Plumb Line	LAM09-06	1
Mazda	LAM01-10	Target Storage Bracket	LAM09-07	1
Nissan/Renault	LAM01-12-L	Cross Sticker		10
Nissan/Renault	LAM01-12-R	Tape		1
Hyundai	LAM01-13	User Manual		1
Subaru	LAM01-15	ADAS Activation Car		1
Honda	LAM01-20
Mazda	LAM01-16-L
Mazda	LAM01-16-R
Honda	LAM01-17
Suzuki	LAM01-18-L
Suzuki	LAM01-18-R
Mitsubishi	LAM01-19-L
Mitsubishi	LAM01-19-R
ADAS Doppler Simulator Configuration	LAC05-04
ACC Relector	LAM05-02
ADAS Corner Relector	LAC05-04

Package B ADAS Rear Camera & AVM Panels Configuaration ( Asian ) Optional Kit $2,699.00
Honda-AVM	LAC04-01
Honda-AVM	LAC04-02
Nissan-AVM	LAC04-11
Hyundai-AVM	LAC04-12-01
Hyundai-AVM	LAC04-12-02
ADAS Nissan AVM Target Configuration	LAC04-15
ADAS Mitsubishi AVM Target Configuration	LAC04-13

Package C ADAS Rear Camera & AVM Panels Configuration (Domestic) Optional
Cadilac-AVM	LAC04-06
Ford-AVM	LAC04-07

Package D ADAS Rear Camera & AVM Panels Configuration ( European ) Optional
Mercedes-RCW	LAC02-02
VW-RCW	LAC02-03
VW-AVM	LAC02-04
Mercedes-RFK	LAC04-08-01
Mercedes-RFK	LAC04-08-02
Renault-AVM	LAC04-10-01
Renault-AVM	LAC04-10-02
ADAS VW AVM Target Configuration	LAC04-14
Romeo Front Camera Single Target Configuration	LAM01-11

When is ADAS Calibration required?

Windshield Replacement
Suspension Repairs
Wheel Alignment
Tire Size Change
Related DTC Is Present
Sensor or Mounting Bracket Replacement
Front Airbag Deployment If Deflected Off Windshield
ADAS-Related TSBs/Manufacturer Position Statement Requirements*
Mechanical Procedures Like Radiator And Condenser Repairs That Require Removal Of Front-Mounted Sensors
ADAPTIVE CRUISE CONTROL (ACC)
Adjusts vehicle speed to maintain a safe distance with vehicles ahead
AROUND VIEW MONITORING (AVM)
Provides 360-degree, bird’s-eye view to help with drivers park more easily
BLIND SPOT DETECTION (BSD)
Detects and warns driver of vehicles in either driver or passenger rear corners (blind spot)
LANE DEPARTURE WARNING (LDW)
Warns the driver when the vehicle drifts out of their lane
LIGHT IMAGING DETECTION AND RANGING (LIDAR)
Detects objects in vehicle vicinity to create a 3D map of objects and surroundings
NIGHT VISION SYSTEM (NVS)
Improves a driver’s vision in darkness or poor weather
REAR COLLISION WARNING (RCW)
Warns the driver of vehicles coming close to the

Vehicle coverage

EUROPEAN
Mercedes-Benz, BMW, Audi, Volkswagen, Land Rover, Jaguar, Volvo, Fiat, Opel, Seat, Skoda, Renault, Citroen, Smart, Mini, Peugeot, Porsche, etc.

AMERICAN
GM, Ford, Chrysler, Buick, Cadillac, Chevrolet, Dodge, Jeep, Lincoln, etc.

ASIAN
Kia, Hyundai, Toyota, Lexus, Honda, Acura, Nissan, Infiniti, Mitsubishi, Subaru, Suzuki, Daihatsu, Mazda, etc.

Note: The vehicle coverage list is continuously
updating.

Features

Start to calibrate in seconds, no more tedious work of disassembly and installation.

Fully foldable design including completely flat folded base, close-fitting foldable arms, and foldable crank handle.

Multi-functional base integrates 360°rotating wheels, wheel locks, and fine-tuning height-adjustment to adapt to uneven ground.

The equilateral triangle design of the base ensures a stable frame Digital distance laser shows the cross-bar height and makes sure it is equal to the standard value precisely.

Five line laser and fine-tuning switch help to easy center the device and parallel to the vehicle and offer high precision calibrating.

Special small target design makes it convenient to carry and store 23-style manufacturer standard targets provide one-stop calibration service.

Compatible with AVM/ RCW/ BSD Targets of Thinkcar ADAS PRO Quick access to ADAS calibration by step-by-step tutorial graphics on Thinkcar diagnostic tools
